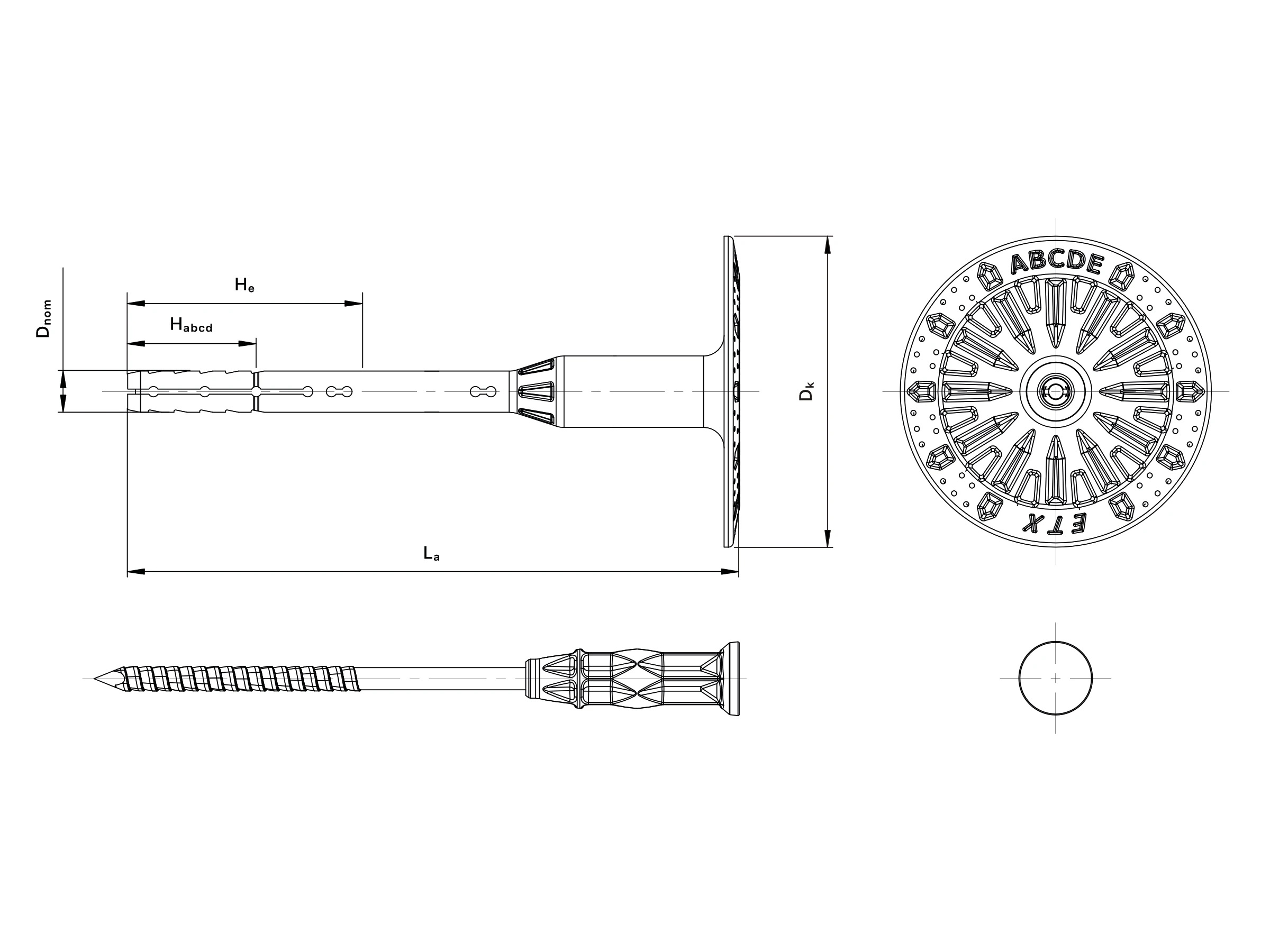

ETICS Insulation Fastener ETX-M ø8x135 (100)

Diameter: 8mm

Length: 135mm

Anchoring Zone: 25~45mm

Sleeve: polypropylene

Pin: galvanized steel with a plastic insulator to prevent thermal bridging

Applications: for mechanical fastening of thermal insulation materials (e.g., EPS, mineralwool, PIR) into concrete or masonry substrates, suitable for building thermo-renovationapplications.

ETICS Façade Fixings ETX fastener is a product with a wide range of applications.It can be fixed in any category of substrate.Advanced 8mm insulation anchor with a galvanized steel pin with plastic cover to preventthermal bridging. Additional ribbing prevents the pin from backing out during installationand slipping from the sleeve over time.With a diameter of 8mm and a short anchoring zone (ABCD: 25mm, E: 45mm), much betterstrength parameters are achieved, as well as installation time is significantly reduced.
